Kramer VS-1616A 16x16 Balanced Stereo Audio Matrix Switcher User Manual

1. Pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Kramer VS-1616A 16x16 Balanced Stereo Audio Matrix Switcher. The VS-1616A is designed to switch any of 16 balanced stereo audio inputs to any or all of 16 balanced stereo audio outputs. It is a high-performance device suitable for various professional audio applications, offering flexible routing and control options.

2. Produk Lebihview

The Kramer VS-1616A is a rack-mountable audio matrix switcher featuring 16 balanced stereo audio inputs and 16 balanced stereo audio outputs. It supports various control methods, including front panel buttons, RS-232, and RS-485, allowing for seamless integration into existing control systems. The unit can store multiple switching configurations as presets for quick recall.

2.1 Ciri Panel Depan

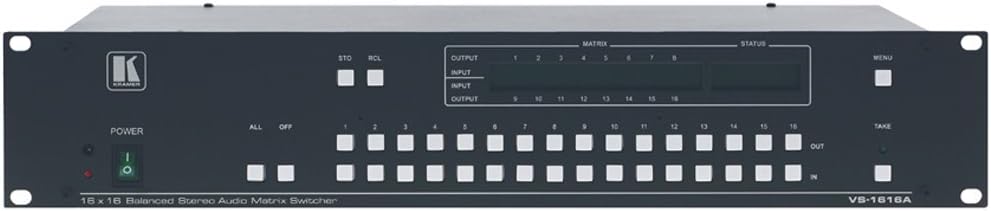

Figure 1: Front Panel of Kramer VS-1616A. This image displays the front panel of the VS-1616A, showing the power switch, input and output selection buttons (1-16), a matrix display for current routing, and control buttons such as STD, RCL, ALL, OFF, TAKE, and MENU.

• Suis kuasa: Toggles the unit's power on or off.
• Input/Output Selection Buttons (1-16): Used to select specific inputs and outputs for routing.
• Matrix Display: Shows the current input-to-output routing configuration.
• STD (Store): Stores the current routing configuration as a preset.
• RCL (Recall): Recalls a previously stored preset.
• SEMUA: Selects all outputs simultaneously.
• MATI: Disconnects all selected outputs.
• AMBIL: Executes the selected routing change.
• MENU: Accesses system settings and configuration options.

2.2 Ciri Panel Belakang

Figure 2: Rear Panel of Kramer VS-1616A. This image illustrates the rear panel, featuring 16 balanced stereo audio inputs and 16 balanced stereo audio outputs via terminal block connectors. It also shows RS-232 IN/OUT ports, an RS-485 port, a SETUP port, and the AC power inlet.

• Balanced Stereo Audio Inputs (1-16): Terminal block connectors for 16 balanced stereo audio sources.
• Balanced Stereo Audio Outputs (1-16): Terminal block connectors for 16 balanced stereo audio destinations.
• RS-232 IN/OUT Ports: For serial control and communication with a computer or control system.
• Pelabuhan RS-485: For extended serial control in multi-unit installations.
• SETUP Port: Used for initial configuration and firmware updates.
• Masuk Kuasa AC: Menyambung kepada bekalan kuasa utama.
• EXTENSION / UNBALANCED OUT: Additional output options.

3. Persediaan

3.1 Pemasangan Rak

The VS-1616A is designed for standard 19-inch rack mounting. Secure the unit using appropriate rack screws through the mounting ears on the front panel. Ensure adequate ventilation around the unit to prevent overheating.

3.2 Menyambung Peranti Audio

1. Ensure the VS-1616A and all audio devices are powered off before making connections.
2. Connect your balanced stereo audio sources (e.g., mixers, media players) to the Balanced Stereo Audio Inputs (1-16) on the rear panel using appropriate terminal block connectors.
3. Connect your balanced stereo audio destinations (e.g., amplifiers, recording devices) to the Balanced Stereo Audio Outputs (1-16) on the rear panel using appropriate terminal block connectors.
4. Ensure all connections are secure and correctly wired for balanced stereo audio.

3.3 Connecting Control Systems (Optional)

For remote control, connect a computer or control system to the RS-232 IN port using a serial cable. For multi-unit control or longer distances, utilize the RS-485 port. Refer to the Kramer control protocol documentation for detailed serial communication commands.

3.4 Sambungan Kuasa

After all audio and control connections are made, connect the supplied AC power cord to the Saluran masuk AC on the rear panel and then to a grounded electrical outlet.

4. Arahan Operasi

4.1 Menghidupkan/Mematikan

Tekan ke KUASA switch on the front panel to turn the unit on or off. The front panel display will illuminate upon power-up.

4.2 Basic Audio Routing

1. Tekan a INPUT button (1-16) to select the desired audio source.
2. Tekan a OUTPUT button (1-16) to select the desired destination for the audio.
3. The matrix display will show the pending connection.
4. Tekan ke AMBIL button to execute the routing change. The display will update to show the active connection.
5. To route one input to multiple outputs, select the input, then select each desired output, and finally press AMBIL.
6. To disconnect an output, select the output and press the DIMATIKAN butang, kemudian AMBIL.
7. To disconnect all outputs, press the SEMUA butang, kemudian DIMATIKAN, kemudian AMBIL.

4.3 Menyimpan dan Mengingat Semula Pratetap

• Menyimpan Pratetap:
  1. Configure the desired audio routing using the input and output buttons.
  2. Tekan ke STD (Store) butang.
  3. Use the input/output buttons to select a preset number (e.g., 1-16) where you want to save the configuration.
  4. Tekan AMBIL to confirm and save the preset.
• Mengimbas semula Pratetap:
  1. Tekan ke RCL (Recall) butang.
  2. Use the input/output buttons to select the desired preset number.
  3. Tekan AMBIL to recall and activate the stored routing configuration.

4.4 Menu Navigasi

Tekan ke MENU button to access system settings such as display brightness, control options, and advanced routing features. Use the input/output buttons to navigate through menu options and the AMBIL button to select or confirm. Refer to the detailed Kramer VS-1616A programming guide for advanced menu functions.

5. Penyelenggaraan

• Pembersihan: Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior of the unit. Do not use liquid or aerosol cleaners.
• Pengudaraan: Ensure that the ventilation openings are not blocked. Proper airflow is crucial for preventing overheating and ensuring long-term reliability.
• Keadaan Persekitaran: Operate the unit within the specified temperature and humidity ranges. Avoid exposing the unit to direct sunlight, excessive dust, or moisture.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

For detailed warranty information, please refer to the warranty card included with your product or visit the official Kramer Electronics website. For technical support, service, or additional documentation, please contact Kramer Electronics customer support through their official channels.
