Silva-Homeline ABC 728.00 Manual Arahan Dehidrator Makanan

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your Silva-Homeline ABC 728.00 Food Dehydrator. Please read these instructions carefully before first use and retain them for future reference.

The Silva-Homeline ABC 728.00 is designed for drying fruits, vegetables, herbs, and other foods. It features 4 stackable trays, 3 power levels, an automatic shut-off function, and a 12-hour timer.

2. Arahan Keselamatan

• Sentiasa pastikan perkakas diletakkan pada permukaan yang stabil dan tahan haba.
• Jangan rendam unit motor di dalam air atau sebarang cecair lain.
• Jauhkan daripada kanak-kanak.
• Unplug the dehydrator from the power outlet when not in use, before cleaning, or during assembly/disassembly.
• Jangan kendalikan perkakas dengan kord atau palam yang rosak.
• Pastikan pengudaraan yang betul di sekeliling unit semasa operasi.
• Avoid touching hot surfaces. Use oven mitts or handles.
• Perkakas ini adalah untuk kegunaan rumah sahaja.

3. Komponen Produk

Familiarize yourself with the parts of your food dehydrator:

• Motor Unit with Heating Element and Fan
• Control Panel (Power/Temperature Dial, Timer)
• Drying Trays (4 included, expandable)
• tudung

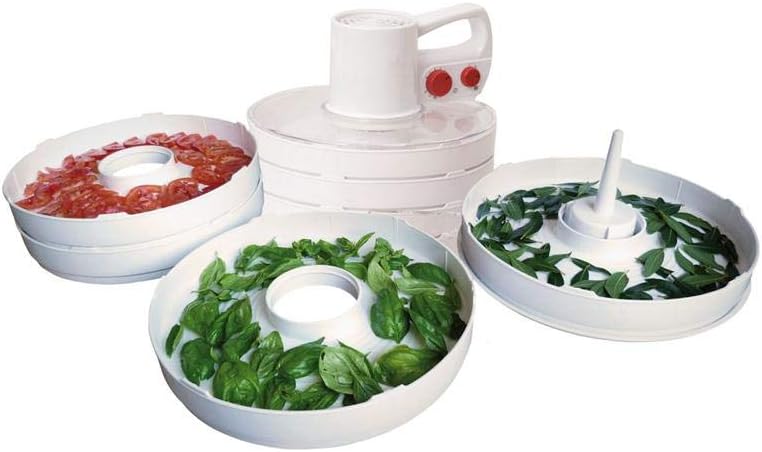

Image: The Silva-Homeline ABC 728.00 Food Dehydrator showing the motor unit, lid, and three drying trays loaded with sliced tomatoes and fresh herbs.

4. Persediaan dan Penggunaan Awal

1. Membongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Simpan bungkusan untuk penyimpanan atau pengangkutan.
2. Pembersihan Awal: Before first use, wash all drying trays and the lid in warm, soapy water. Rinse thoroughly and dry completely. The motor unit should be wiped with a damp kain. Jangan rendam unit motor di dalam air.
3. Perhimpunan: Place the motor unit on a flat, stable surface. Stack the desired number of drying trays onto the base. Ensure the trays are correctly aligned. Place the lid on top of the uppermost tray.
4. penempatan: Position the dehydrator in a well-ventilated area, away from walls or other appliances, to allow for proper airflow.

Image: The Silva-Homeline ABC 728.00 Food Dehydrator assembled and in use outdoors, showcasing various dried fruits on its trays.

5. Arahan Operasi

1. Menyediakan makanan: Wash, peel, and slice fruits, vegetables, or other foods to be dehydrated. Ensure slices are uniform in thickness for even drying.
2. Muatkan Dulang: Arrange the prepared food in a single layer on the drying trays. Do not overlap food items to ensure optimal air circulation. The trays are BPA-free, ensuring food safety.
3. Stack Trays: Stack the loaded trays onto the motor unit base. Place the lid securely on top.
4. Sambungkan Kuasa: Palamkan kord kuasa ke salur keluar elektrik 240V yang sesuai.
5. Pilih Tahap Kuasa: The dehydrator offers 3 power levels: 250W, 500W, and 700W. Select the appropriate power level using the control dial based on the type of food and desired drying speed. Higher wattage provides faster drying.
6. Tetapkan Pemasa: Use the integrated 12-hour timer to set the desired drying duration. The dehydrator will automatically shut off once the timer expires.
7. Monitor Drying: Periodically check the food for dryness. Drying times vary depending on food type, thickness, and humidity.
8. Matikan automatik: The dehydrator is equipped with an automatic shut-off feature for safe operation, activating after the set timer duration.
9. Sejukkan Diri: Once drying is complete, unplug the unit and allow the food and trays to cool before handling and storing.

Image: A single drying tray from the dehydrator, showcasing a variety of dried fruits including apricots, kiwi slices, pineapple rings, and figs.

Image: A drying tray displaying an assortment of dried foods, including orange slices, apricots, and figs, ready for consumption or storage.

6. Penyelenggaraan dan Pembersihan

1. Cabut plag: Sentiasa cabut plag penyahhidrat daripada salur keluar kuasa sebelum membersihkan.
2. Dulang dan Penutup Bersih: The drying trays and lid are dishwasher-safe for easy and effortless cleaning. Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry completely.
3. Unit Motor Bersih: Lap bahagian luar unit motor dengan iklanamp kain. Jangan gunakan pembersih yang kasar atau rendam unit motor di dalam air.
4. Storan: Ensure all parts are clean and dry before storing the dehydrator. Store in a cool, dry place.

Imej: Dari dekat view of a single white drying tray, highlighting its design and the 'abc elektro' logo, indicating its brand.

7. Penyelesaian masalah

• Dehidrator tidak dihidupkan:
  • Periksa sama ada kord kuasa dipasang dengan selamat ke dalam salur keluar.
  • Pastikan salur keluar kuasa berfungsi.
  • Verify that the power/temperature dial is set correctly.
• Pengeringan tidak sekata:
  • Ensure food slices are uniform in thickness.
  • Avoid overcrowding trays; arrange food in a single layer.
  • Rotate trays periodically during the drying process.
• Drying takes too long:
  • Increase the power level (up to 700W).
  • Ensure proper air circulation by not overloading trays.
  • Consider the ambient humidity, which can affect drying times.
• Reduced performance with many trays:
  • While the dehydrator is extensible, performance may decrease noticeably with more than 8 trays. For optimal results, it is recommended to use up to 8 trays.

8. Spesifikasi

9. Waranti dan Sokongan

Maklumat Waranti: Please refer to your purchase documentation or contact the retailer for specific warranty terms and conditions applicable to your Silva-Homeline ABC 728.00 Food Dehydrator.

Sokongan Pelanggan: For technical assistance, spare parts, or further inquiries, please contact Silva-Homeline customer support through their official webtapak atau maklumat hubungan yang diberikan bersama pembungkusan produk anda.
