Progress Lighting P3689-44 Two-Light Close-to-Ceiling Fixture Instruction Manual

pengenalan

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Progress Lighting P3689-44 Two-Light Close-to-Ceiling Fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The P3689-44 fixture features a clean design with elegant lines, complemented by a satin Oxford Silver finish and an etched alabaster style glass shade. Its unique twist-lock shade design allows for easy access for changing light bulbs without external hardware.

Maklumat Keselamatan

AMARAN: Risiko renjatan elektrik. Putuskan sambungan kuasa pada kotak fius atau pemutus litar sebelum pemasangan atau servis.

PERHATIAN: For your safety, read and understand the information provided in this manual completely before attempting to assemble, install, or operate this product. Failure to do so could lead to electric shock, fire, or other injuries that could be hazardous or even fatal.

• Semua sambungan elektrik mestilah mengikut kod tempatan, ordinan atau Kod Elektrik Kebangsaan (NEC).
• Rujuk juruelektrik bertauliah jika anda tidak pasti tentang prosedur pendawaian.
• Gunakan hanya penyambung wayar tersenarai UL/cUL.
• Jangan melebihi wat maksimumtage dinyatakan untuk mentol.
• Pastikan lekapan dipasang dengan kukuh pada elemen struktur siling.

Kandungan Pakej

Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, contact Progress Lighting customer service before proceeding.

• Badan lekapan (1)
• Lorek kaca (1)
• Mounting hardware kit (1)
• Manual arahan (1)

Persediaan dan Pemasangan

Alat Diperlukan (Tidak Termasuk):

• Phillips pemutar skru
• Pemutar skru kepala rata
• Strippers wayar
• Pita elektrik
• Cermin mata keselamatan

Langkah Pemasangan:

1. Matikan kuasa: Before starting installation, ensure the power to the circuit is turned off at the main fuse box or circuit breaker.
2. Prepare mounting: Attach the mounting bracket to the junction box in the ceiling using the screws provided in the hardware kit. Ensure the bracket is securely fastened.
3. Pendawaian: Connect the fixture's wires to the house wires according to the following:
   • Sambungkan hitam wayar lekapan ke hitam (hot) house wire.
   • Sambungkan putih wayar lekapan ke putih (neutral) house wire.
   • Sambungkan tembaga kosong (ground) fixture wire to the green or bare copper (ground) house wire.
   Secure all connections with wire connectors and wrap with electrical tape for added safety.
4. Mount fixture body: Carefully push the wired fixture body up to the ceiling, aligning the screw holes on the fixture with the screws on the mounting bracket. Secure the fixture body in place with the decorative nuts or screws provided.
5. Pasang mentol: Insert two (2) 60-watt maximum medium base bulbs (not included) into the sockets. Do not exceed the recommended wattage.
6. Attach glass shade: Align the glass shade with the fixture body and twist it clockwise until it locks securely into place. The unique twist-lock design ensures the shade is held firmly without visible hardware.

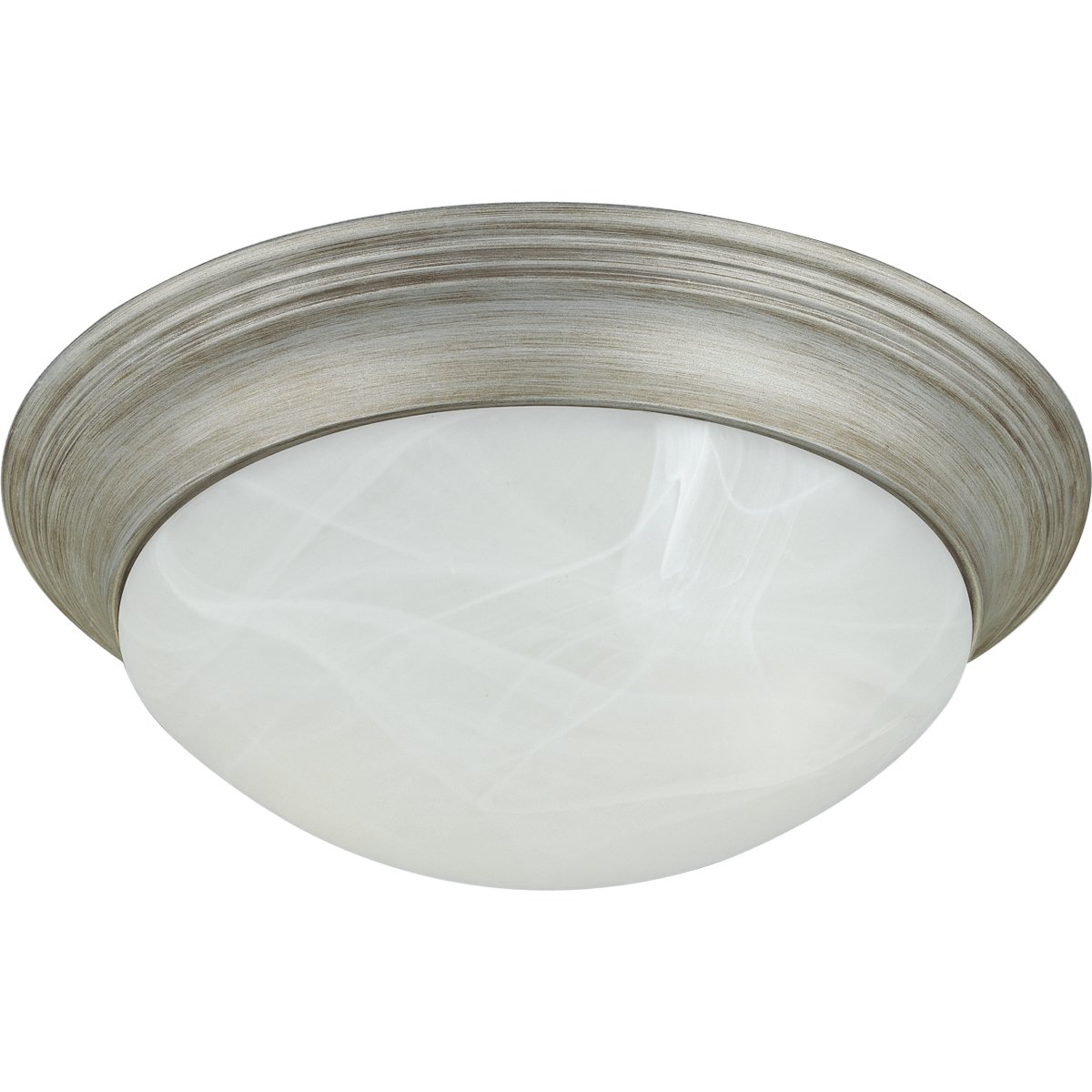

Image: The Progress Lighting P3689-44 Two-Light Close-to-Ceiling Fixture, showcasing its Oxford Silver finish and etched alabaster style glass shade. The fixture is designed for flush mounting to the ceiling.

Arahan Operasi

Once the fixture is fully installed and bulbs are in place, restore power at the main fuse box or circuit breaker. The fixture is operated via a standard wall switch (not included) connected to the circuit.

• Pastikan wat yang betultage bulbs (max 60-watt medium base) are used to prevent overheating or damage.
• The fixture is designed for indoor use in dry locations only.

Penyelenggaraan

Pembersihan:

To clean the fixture, ensure power is turned off. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish or glass. For the glass shade, a mild glass cleaner can be used sparingly on a cloth, then wiped dry.

Penggantian mentol:

To replace bulbs, turn off power at the circuit breaker. Gently twist the glass shade counter-clockwise to remove it. Unscrew the old bulbs and replace them with new 60-watt maximum medium base bulbs. Reattach the glass shade by twisting it clockwise until secure.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Lekapan Lampu Progress ini dilindungi oleh Waranti pengilang selama 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.

For warranty claims, technical support, or replacement parts, please contact Progress Lighting customer service. Keep your purchase receipt as proof of purchase.

Progress Lighting Customer Service: Refer to the official Progress Lighting webtapak atau pembungkusan produk untuk maklumat hubungan semasa.
