Peerless-AV SP850-UNLP Pull-Out Swivel Mount User Manual

1. Pengenalan

The Peerless-AV SP850-UNLP Pull-Out Swivel Mount is engineered for securely mounting flat panel displays ranging from 32 inches to 65 inches. This mount features a pull-out and swivel mechanism, allowing for easy access to the rear of the display and flexible viewing angle adjustments. Its ultra-thin design ensures the display remains close to the wall when retracted, maintaining a clean aesthetic.

2. Maklumat Keselamatan

Before installation, read all instructions carefully. Improper installation can result in property damage or personal injury. If you do not understand these instructions or have doubts about the safety of the installation, consult a qualified professional.

• Kapasiti Berat: Jangan melebihi kapasiti berat maksimum 150 lbs (68 kg).
• Struktur Dinding: Ensure the mounting surface can safely support the combined weight of the mount and the display. This mount is designed for installation on 16-inch wood studs, concrete, or cinder block walls.
• Keselamatan Diri: Always use appropriate safety equipment during installation. Two people are recommended for lifting and positioning the display.
• Pengurusan Kabel: Route all cables to prevent pinching or damage during movement of the mount.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• SP850-UNLP Pull-Out Swivel Mount Assembly
• PLP-UNL Universal Adapter Plate
• Kit Perkakasan Pemasangan (pelbagai skru, pencuci, spacer, sauh dinding)
• Security Lock Out Screw
• Lock Key Installation Tool
• Arahan Pemasangan (dokumen ini)

4. Persediaan dan Pemasangan

This section outlines the general steps for installing your Peerless-AV SP850-UNLP mount. Refer to the detailed diagrams provided with your physical product for precise measurements and hardware usage.

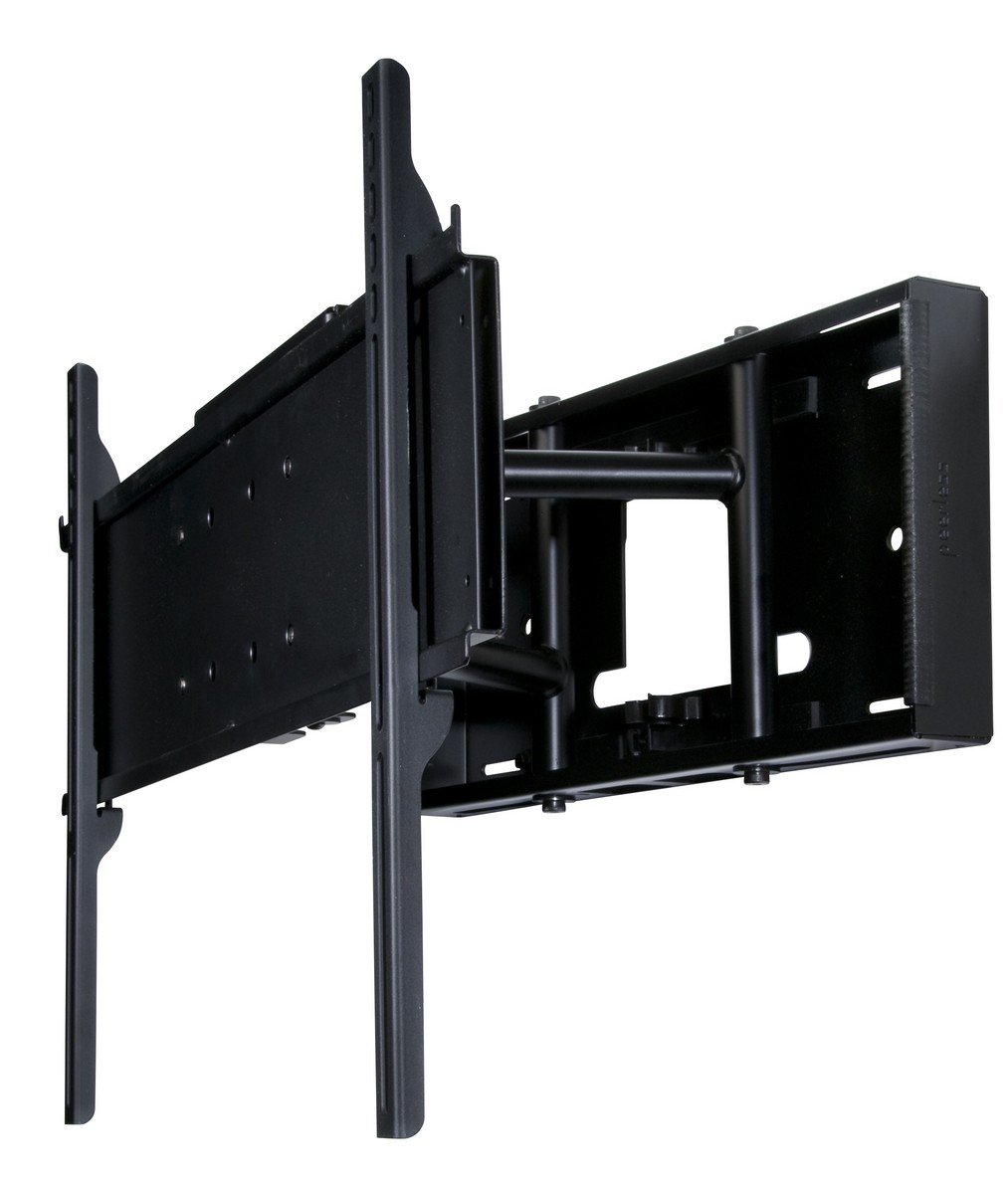

Image 1: Peerless-AV SP850-UNLP Pull-Out Swivel Mount. This image shows the mount in its retracted position, highlighting its compact design and the wall plate.

4.1. Alatan Diperlukan (Tidak Termasuk)

• Stud finder (for wood stud installation)
• Gerudi dengan mata gerudi yang sesuai
• Tahap
• Pita pengukur
• Socket wrench or adjustable wrench
• Pemutar skru kepala Phillips

4.2. Pemasangan Plat Dinding

1. Locate and mark the desired mounting position on the wall. For wood stud installation, use a stud finder to identify the center of two adjacent 16-inch studs.
2. Position the wall plate against the wall, ensuring it is level. Mark the drilling locations.
3. Drill pilot holes at the marked locations. For wood studs, drill appropriate size pilot holes. For concrete/cinder block, use a masonry drill bit and insert wall anchors.
4. Secure the wall plate to the wall using the provided lag bolts and washers. Ensure all fasteners are tightened securely.

4.3. Display Bracket Installation

1. Attach the PLP-UNL universal adapter plate to the back of your flat panel display. The adapter plate supports VESA 100 and 200 hole patterns. Use the appropriate screws and spacers from the hardware kit to ensure a secure fit without overtightening. The I-shaped design helps avoid blocking display connections.
2. Carefully lift the display and hook the adapter plate onto the mount arms.
3. Secure the display to the mount arms using the provided locking mechanisms or screws.
4. Adjust the horizontal alignment using the +/- 1 degree roll feature if needed.
5. Insert the security lock out screw to prevent unwanted extension of the mount, if desired.

5. Arahan Operasi

The SP850-UNLP mount offers flexible positioning for your display.

5.1. Pull-Out and Swivel Function

• To extend the display, gently pull the screen forward from the wall. The swivel arms will extend up to 10.5 inches (26.7 cm) from the wall.
• Once extended, you can swivel the display up to 45 degrees left or right, depending on the screen size, to achieve your desired viewsudut ing.
• To retract the display, gently push the screen back towards the wall until it is flush.

5.2. Penyesuaian Tilt

• The mount allows for incremental tilt adjustments of 0, 5, or 10 degrees.
• To adjust the tilt, loosen the tilt adjustment knobs or bolts (refer to your product's specific hardware).
• Tilt the display to the desired angle and then securely tighten the knobs or bolts to lock the tilt in place.

6. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your mount.

• Pemeriksaan Berkala: Periodically check all mounting screws and connections to ensure they remain tight and secure. Retighten if necessary.
• Pembersihan: Bersihkan pelekap dengan kain lembut dan kering. Elakkan pembersih atau pelarut yang kasar yang boleh merosakkan kemasan.
• Pergerakan: If the pull-out or swivel mechanism becomes stiff, ensure no debris is obstructing the moving parts. Do not apply lubricants unless specifically recommended by the manufacturer.

7. Penyelesaian masalah

If you encounter issues with your SP850-UNLP mount, refer to the following common solutions:

• Display is not level: Use the +/- 1 degree roll adjustment feature to fine-tune the horizontal alignment of the display. Ensure the wall plate was installed level.
• Difficulty pulling out or swiveling: Check for any obstructions behind the display or around the mount arms. Ensure the security lock out screw is not engaged if you intend to use the pull-out feature. Verify the display weight does not exceed the mount's capacity.
• Gunung berasa longgar: Immediately check and retighten all wall mounting bolts and display attachment screws. If the issue persists, consult a professional installer.
• Cables are pinched: Carefully reroute cables to ensure they have enough slack and do not interfere with the mount's movement.

8. Spesifikasi

9. Waranti dan Sokongan

For specific warranty information regarding your Peerless-AV SP850-UNLP mount, please refer to the warranty card included with your product or visit the official Peerless-AV website. For technical support, product inquiries, or assistance with installation, please contact Peerless-AV customer service directly through their official channels.
