Euro-Pro F1066 5-Liter Electronic Stainless Steel Deep Fryer User Manual

1. Pengenalan

Welcome to the user manual for your new Euro-Pro F1066 5-Liter Electronic Stainless Steel Deep Fryer. This appliance is designed for efficient and safe deep frying of various foods, providing delicious results with ease. Its generous 5-liter capacity and precise electronic controls ensure consistent cooking performance. Please read this manual thoroughly before operating your deep fryer to ensure safe and optimal use.

2. Arahan Keselamatan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa dipatuhi, termasuk yang berikut:

• Baca semua arahan sebelum menggunakan penggoreng dalam.
• Jangan sentuh permukaan panas. Sentiasa gunakan pemegang atau tombol.
• To protect against electrical shock, do not immerse the control panel, cord, or plug in water or other liquid.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian, dan sebelum membersihkan perkakas.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh menyebabkan kecederaan.
• Jangan gunakan di luar rumah.
• Jangan biarkan kord tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
• Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
• Berhati-hati yang melampau mesti digunakan apabila menggerakkan perkakas yang mengandungi minyak panas atau cecair panas lain.
• Sentiasa pasangkan plag pada perkakas terlebih dahulu, kemudian pasangkan kord ke dalam salur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam dari alur keluar dinding.
• Jangan gunakan perkakas untuk kegunaan rumah selain daripada yang dimaksudkan.
• This deep fryer features a detachable safety power cord designed to prevent accidents. Ensure it is properly connected before use.
• The appliance is equipped with an automatic shut-off feature for safety.

3. Produk Lebihview

Familiarize yourself with the components of your Euro-Pro F1066 Deep Fryer to ensure proper assembly and operation.

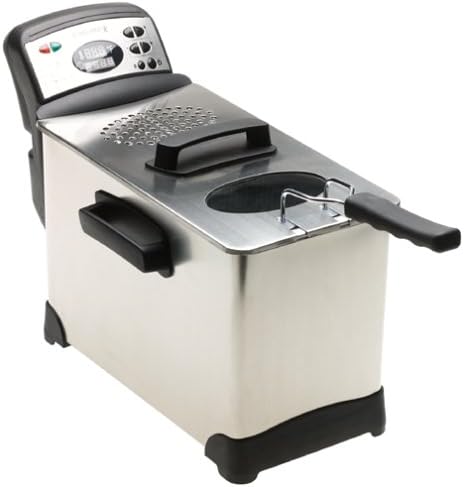

Image showing the Euro-Pro F1066 Deep Fryer with its stainless steel body, black handles, and digital control panel on top. This view provides a general perspective of the appliance.

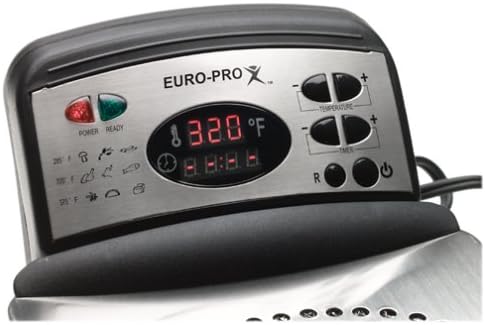

Close-up image of the digital electronic control panel, displaying the temperature readout, timer, and buttons for power, ready indicator, temperature adjustment (+/-), and timer adjustment (+/-).

4. Persediaan dan Penggunaan Awal

4.1 Membongkar

• Carefully remove all packaging materials, including any protective films or inserts, from the deep fryer and its components.
• Simpan pembungkusan untuk penyimpanan atau pengangkutan pada masa hadapan jika perlu.

4.2 Pembersihan Awal

• Before first use, wash the frying basket, lid, and removable oil container in warm, soapy water. Rinse thoroughly and dry completely.
• Wipe the exterior of the deep fryer body with a damp kain. Jangan rendam unit utama atau panel kawalan di dalam air.

4.3 Assembling the Fryer

• Place the removable oil container securely into the main body of the deep fryer.
• Ensure the heating element and control panel assembly are correctly seated on top of the oil container. The unit has a safety interlock that prevents operation if not properly assembled.
• Insert the frying basket into the oil container.

4.4 Filling with Oil

• Pour appropriate cooking oil (e.g., vegetable oil, canola oil, peanut oil) into the oil container.
• Fill the oil between the MIN and MAX fill lines indicated inside the container. Do not overfill or underfill. The 5-liter capacity refers to the maximum oil volume.

5. Operating Your Deep Fryer

5.1 Menghidupkan

• Plug the detachable safety power cord into a grounded electrical outlet. The digital display on the control panel will illuminate.
• Tekan ke KUASA butang untuk menghidupkan unit.

5.2 Menetapkan Suhu

• Gunakan TEMPERATURE + dan - buttons to set your desired frying temperature. The digital display will show the set temperature.

5.3 Pemanasan awal

• The deep fryer will begin heating the oil to the set temperature. The SEDIA indicator light will illuminate once the oil has reached the target temperature. This may take several minutes depending on the oil volume and desired temperature.

5.4 Menggoreng Makanan

• Carefully place the food into the frying basket. Do not overload the basket, as this can lower the oil temperature significantly and result in soggy food. The extra large basket holds up to 2 pounds of food.
• Perlahan-lahan turunkan bakul ke dalam minyak panas.
• Goreng mengikut masa yang disyorkan atau sehingga perang keemasan dan masak sepenuhnya.

5.5 Menggunakan Pemasa

• The deep fryer includes a digital timer. Use the PEMASA + dan - butang untuk menetapkan masa memasak yang diingini.
• The timer will count down and may sound an alert when finished.

5.6 Selepas Menggoreng

• Carefully lift the frying basket from the oil and hook it onto the side of the fryer to allow excess oil to drain.
• Remove food from the basket and place on paper towels to absorb any remaining oil.
• Tekan ke KUASA button to turn off the unit, then unplug the detachable safety power cord from the wall outlet.

6. Penjagaan dan Penyelenggaraan

6.1 Oil Management

• Always allow the oil to cool completely before handling or cleaning. This can take several hours.
• Once cooled, the oil can be filtered through a fine-mesh sieve or cheesecloth to remove food particles, then stored in an airtight container for reuse.
• Dispose of old oil responsibly according to local regulations. Do not pour oil down the drain.

6.2 Membersihkan Penggoreng

• Ensure the deep fryer is unplugged and completely cool before cleaning.
• Disassemble all removable parts: lid, frying basket, and oil container.
• Wash these removable parts in warm, soapy water. They are often dishwasher safe, but refer to specific product instructions if available.
• Wipe the exterior stainless steel body and the control panel assembly with a damp cloth. For stubborn stains, use a mild non-abrasive cleaner.
• PENTING: Never immerse the control panel assembly or the main electrical unit in water or any other liquid.
• Keringkan semua bahagian dengan teliti sebelum memasang semula atau menyimpan.

6.3 Penyimpanan

• Store the deep fryer in a cool, dry place, away from direct sunlight and moisture.
• Ensure all components are clean and dry before storage.

7. Panduan Penyelesaian Masalah

If you encounter issues with your deep fryer, consult the following table for common problems and solutions.

8. Spesifikasi Produk

Detailed technical specifications for the Euro-Pro F1066 Deep Fryer.

Image illustrating the approximate dimensions of the Euro-Pro F1066 Deep Fryer, showing its depth (30.48cm), width (58.42cm), and height (22.86cm) for reference.

9. Waranti dan Sokongan Pelanggan

This Euro-Pro F1066 5-Liter Electronic Stainless Steel Deep Fryer comes with a limited warranty provided by the manufacturer, SharkNinja. Please refer to the warranty card or documentation included with your original purchase for specific terms, conditions, and duration of the warranty.

For technical assistance, replacement parts, or to make a warranty claim, please contact SharkNinja customer support. Contact information can typically be found on the manufacturer's official webtapak atau pada pembungkusan produk.
